Description

The Vektron Q9 is equipped with hydraulic disc brakes, a sturdy rear rack, Valo Direct light, and fenders—so it is ideal for all-season commuting in the city.

  • German-engineered Bosch Active Line electric drivetrain—the industry leader in electric bike technology
  • Hydraulic disc brakes for all-weather stopping power
  • New frame design, with a reclining battery for a lower center of gravity and better ride
  • Integrated Atlas Rack works seamlessly with Thule Yepp Maxi and Nexxt Maxi child seats—no adapters needed
  • Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family

Specifications

Wheel size 20" wheels
Speeds 1 x 9
Weight 21.9 kg (48.2 lb)
Folding size 41 x 86 x 68 cm (16.1" x 33.9" x 26.8")
Folding time 10 sec
Frame sizes One size
Gear inches 33" - 97" (2.65 - 7.72 m)
Distance:Seatpost to handlebars Min: 620 mm (24.4") Max: 690 mm (27.2")
Distance: Saddle to pedal Min: 670 mm (26.4") Max: 1100 mm (43.3")
Suggested rider height 147 - 195 cm (4'10" - 6'5")
Frame Vektron G2 Frame
Fork Tern Tarsus, 6061-Al, hydroformed
Handlepost Tern Physis 3D, 3D forged, 5 patented technologies
Stem Tern Andros, adjustable, forged construction, patented technology
Headset Tern Flux, cartridge bearings, Physis integrated
Handlebar Flat bar, 6061-AL, Tern Andros adapted
Grips/bar tape Velo ergonomic, lock-on

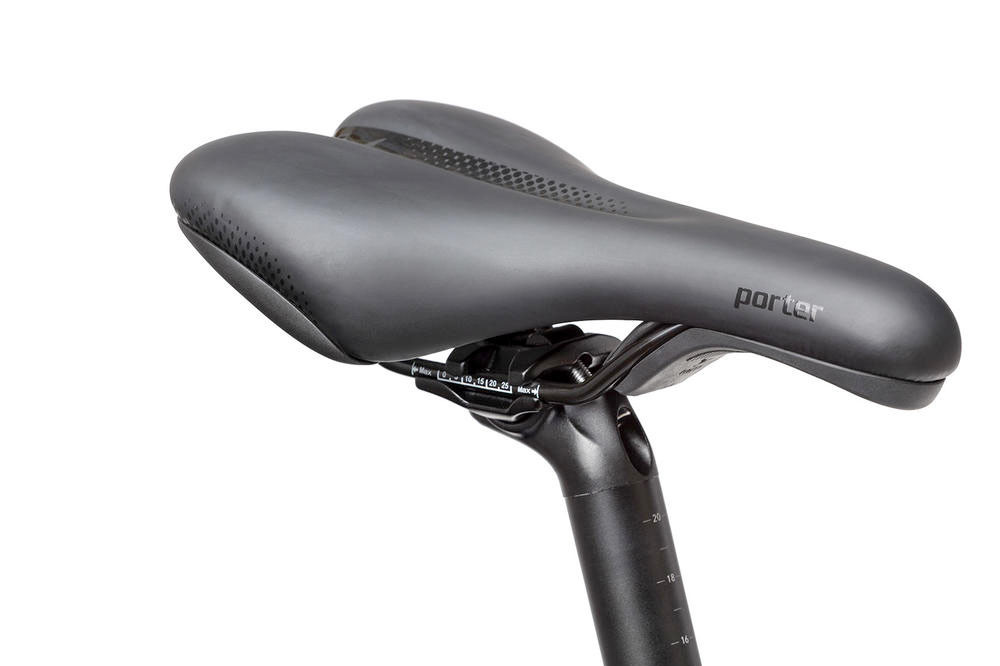

Saddle Tern Porter, patented GripPad design
Seatpost Tern Telescope, 34.9 mm, Lite 2014-AL
Seatpost clamp Oversize, 6061-AL, 2pc
Front brake Shimano, hydraulic disc
Rear brake Shimano, hydraulic disc
Brake levers Shimano, hydraulic disc
Brake cable & housing Shimano, hydraulic disc
Front hub Shimano disc
Rear hub Shimano disc
Spokes and nipples Stainless
Rims Kinetix Comp, for disc
Tires Schwalbe Big Apple, 55-406, puncture protection, Reflex
Shifter(s) Shimano Alivio, 1 x 9 spd, trigger
Rear derailleur Shimano Alivio Shadow
Crankset Vektron custom, forged 6061-AL crankarm
Cassette/freewheel Shimano 11-32T, 9 spd
Bottom bracket Motor integrated
Chain 9 spd, DHT for eBike, GST corrosion resistant coating
Pedals MKS EZY
Shifter cable & housing Jagwire LEX-SL, slick treatment, alloy ferrules
Motor Bosch Active Line, 36 V/250 W, max speed 25 kph (EU); max speed 20 mph (US), max torque 40 Nm
Battery Bosch PowerPack 400 Wh
Display Bosch Purion, 4 mode selectable, walk assist
Range 400 Wh: 50-130 km (30-80 mi)
Charger Bosch Compact Charger/ Bosch Standard Charger
Bell Aluminum
Chainguard SKS Chainblade
Kickstand URSUS MOOI, rear mount
Luggage socket Yes
Front light Tern Valo Direct, integrated, 41 lux/150 lumens
Rear light Herrmans H-Trace, for eBike
Fenders SplashGuard, stainless hardware
Rack(s) Atlas Rack, integrated 8 point mounting, max load capacity 27 kg (59 lb)
Red
