Description

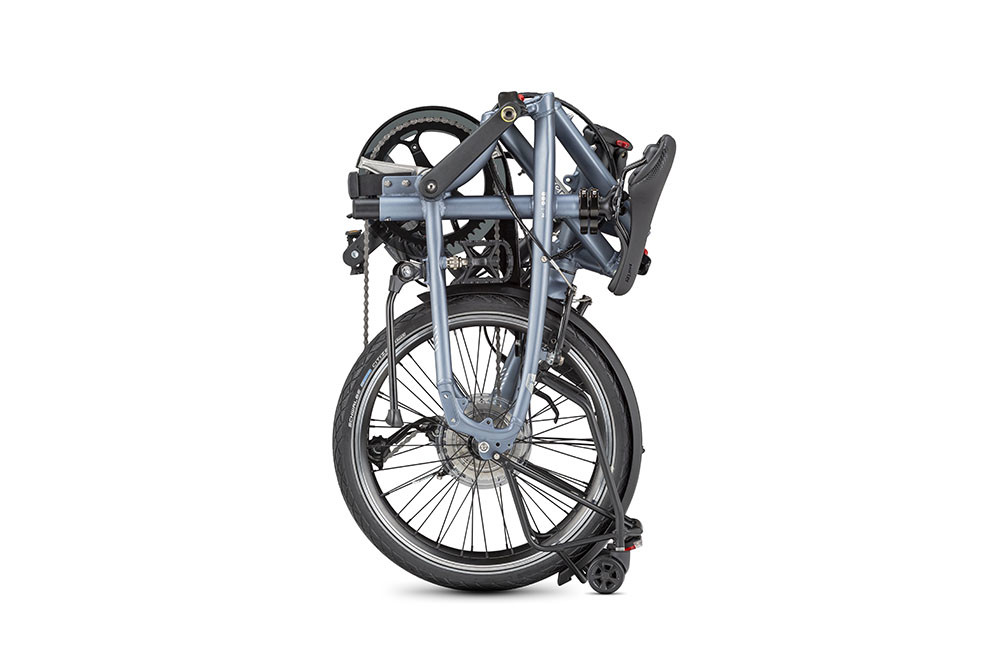

  • 30% smaller than traditional 20” folding bikes
  • Fits conveniently into lockers, closets, or any narrow space
  • Metro Transit Rack with built-in spinner wheels for easier trolleying
  • Fits riders from 147 to 195 cm (4’10” – 6’5”)
  • New TFL Joint with 3D interface, DeadBolt design and SpringLock technology
  • New 3D-forged Physis RF Handlepost
  • Tern Porter saddle with patented GripPad design
  • 8-speed Shimano Acera, Shadow RD derailleur

Specifications

Wheel size 20" wheels
Speeds 1 x 8
Weight 14.3 Kg (31.4 lb) fully-equipped
Folding size 35 x 81 x 52 cm (13.8" x 31.9" x 20.5")
Folding time 30 seconds
Frame sizes One size
Gear inches 31" - 91" (2.50 - 7.28 m)
Distance:Seatpost to handlebars Min: 630 mm (24.8"); Max: 675 mm (26.6")
Distance: Saddle to pedal Max: 1045 mm (41.1")
Suggested rider height 147 - 195 cm (4'10" - 6'5")
Frame Tern BYB, Aluminum, TriFold patented technology, EFBE tested: ISO 4210
Fork Tern Tarsus, 6061-AL, hydroformed
Handlepost Tern Physis RF, 3D forged, 5 patented technologies
Stem Tern Andros (G2), adjustable, forged construction, patented technology
Headset Flux, cartridge bearings, Physis integrated
Handlebar Flat bar, 6061-AL, Andros adapted
Grips/bar tape Velo ergonomic, lock-on
Saddle Tern Porter, patented GripPad design
Seatpost Tern Telescope, 34.9/30.9 mm, 2014-AL
Seatpost clamp Oversize, 6061-AL, 2pc
Front brake Kinetix SpeedStop V-brakes, stainless hardware
Rear brake Kinetix SpeedStop V-brakes, stainless hardware
Brake levers Shimano
Brake cable & housing Jagwire, anti-compression housing, Slick Lube liner
Front hub Kinetix Neutron Mini 74, sealed cartridge bearing Opt: BioLogic Joule 3 dynamo
Rear hub Novatec, sealed cartridge bearing
Spokes and nipples Stainless steel
Rims Doublewall aluminum
Tires Schwalbe Citizen, 42-406, puncture protection, Reflex
Shifter(s) Shimano, 1 x 8 spd
Rear derailleur Shimano Acera, Shadow RD
Crankset Forged 6061-AL, 52T
Cassette/freewheel Shimano 11-32T, 8 spd
Bottom bracket FSA, Cartridge, sealed bearings
Chain KMC, 8 spd
Pedals MKS EZY
Shifter cable & housing Jagwire LEX-SL, slick treatment, alloy ferrules
Bell Pitch, brass
Chainguard Hebie
Kickstand Deluxe center mount
Luggage socket Yes
Front light Opt: Tern Valo 2, integrated, 41 lux/150 lumens
Rear light Opt: Deluxe LED
Fenders SKS, stainless hardware
Rack(s) Tern Metro Transit Rack
Accessory Pedal Holder
Satin Dark Bronze
Satin Champagne
Silver-Blue

Geometry
