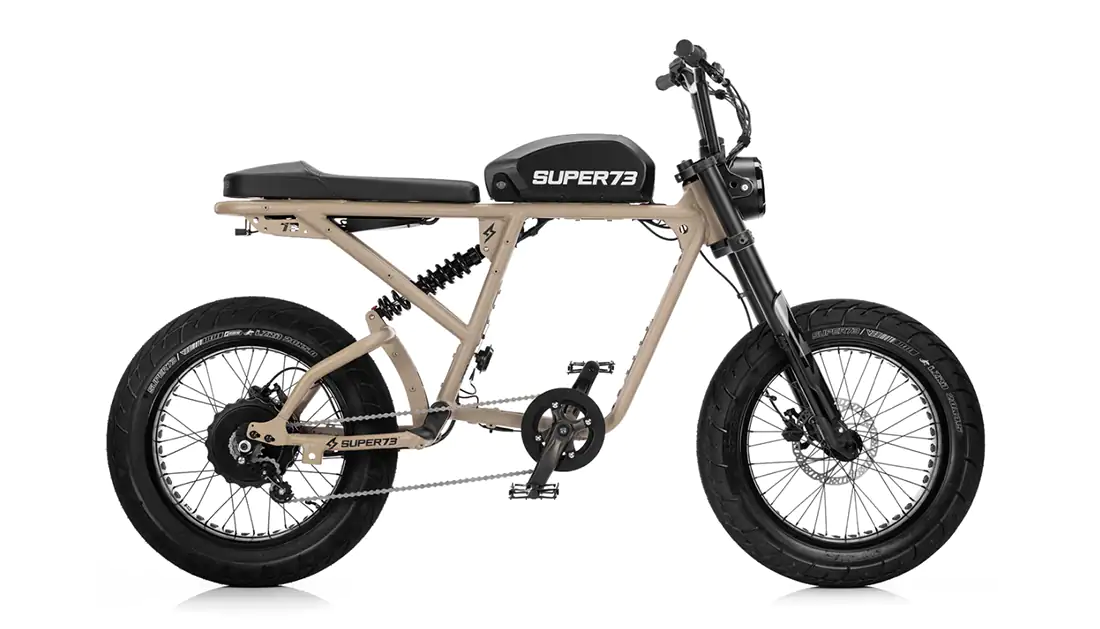

SUPER73-R Brooklyn

SUPER73-R Brooklyn

Check in store
Trial a bike Finance Contact us Purchase Inquiry Buy Now

Description

The SUPER73-R Brooklyn showcases all of SUPER73’s iconic features; the powerful R-series drive system, along with two-piston hydraulic brakes and dual suspension. Boasting our most powerful LED headlight and our LZRD tires, the R Brooklyn is equipped for peak city and street riding.

Specifications

Frame 6061 / 7005 Aluminum Alloy, 1-1/8" to 1.5" tapered head tube
Motor Class-1 Mode Output: 750 watts nominal / 1200 watt peak Class-2 Mode Output: 750 watts nominal / 1200 watt peak (Default) Class-3 Mode Output: 750 watts nominal / 1200 watt peak Off-Road Mode Output: 1200 watts nominal / 2000* watt peak *Off-Road Mode peak output will increase from 2000 watts to 2300 watts with future OTA update.
Top speed Class-1 Mode: 20mph (throttle deactivated, pedal assist only) Class-2 Mode: 20mph Class-3 Mode: 28mph (throttle deactivated, pedal assist only) Off-Road Mode: 28mph +
Battery 960 watt-hours, 21700 cells
Weight 83 lbs
Front hub 15 x 150mm thru-axle aluminum alloy
Rims 20" x 100mm alloy with lightening cutouts
Tires Front: 20 x 4.5" / Rear: 20" x 5" LZRD
Inner tubes 20" x 4.5-5", angled valve stem
Brakes Tektro Hydraulic, 2-piston forged aluminum caliper, 180mm front and rear rotors
Suspension Front: Inverted coil spring fork Rear: Coilover mono shock – Compression and rebound damping
Display Transflective Monochrome LCD + Mobile Device
IOS + Android compatible Yes
Headlight LED - 1100 lumens
Tail light LED
Horn Yes
Charger 3A (6-7 hour charge time) / Optional: 5A (3-4 hour charge time)
Throttle Thumb throttle
Pedal assist 4 modes (ECO, TOUR, SPORT, SUPER)
Bottom bracket 120mm sealed bearing, square taper
Crank / front chain ring 125mm alloy crank arms, 36T chainring / Optional: 44T chainring for 10 speed gearing
Gearing Single-speed 16T rear cog / 10 speed gearing (11-34T): optional accessory sold separately
Rear derailleur Single-speed chain tensioner / 10 speed: optional accessory sold separately
Passenger footpegs Optional accessory sold separately
Seat height 32"
Weight limit 325lbs
Dark Earth
Blu Tang
Obsidian

Geometry
